Boat Flooring CNC Nesting Review Checklist for Marine Machine Shops

A drawing can be approved and still be unready for a CNC toolpath. The gap is often the nesting review: the point at which a machine shop decides how approved boat-flooring parts will sit on the material, how their visible direction will be kept consistent, and which notes must travel with the cutting file. If that review is skipped, a team may cut from the correct drawing while still creating avoidable questions about orientation, boundaries, offcuts, or incomplete parts.

This checklist is for the pre-production checkpoint between an approved input and toolpath release. It does not prescribe machine settings, material allowances, production rates, or a universal nesting method. Those choices depend on the material, equipment, drawing, and responsible technical team. Its purpose is narrower: make the assumptions visible before cutting begins.

Start With a Releaseable Input, Not a Convenient File

Before arranging parts, identify the drawing or template version that is allowed to drive the nesting plan. A file found in an email, a screenshot from a customer, or an earlier revision may be useful context, but it should not silently become the production source. Record the file name or reference, revision date, sender, and any open question alongside the nest.

The boat flooring CNC job pack guide is useful at this point because it separates the inputs, decisions, and handoff notes that belong in a machining packet. The nesting review then asks a focused question: does the plan use the same approved input named in that packet?

If the input is a template, measurement sheet, or marked-up image rather than a released drawing, label it that way. Do not use a tidy-looking nest to imply that the source has become fully verified. The next action may be a clarification or drawing review, not a toolpath.

Confirm Which Way the Visible Surface Must Run

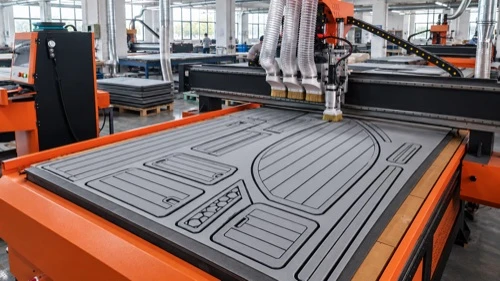

Boat flooring can have grooves, color contrast, logos, borders, or other visible features that make orientation a buyer-facing decision. A part can fit geometrically while its surface direction looks inconsistent beside another part. Before the plan is released, make the intended orientation explicit for each visible group of parts.

Use one simple reference: bow-to-stern, port-to-starboard, a named edge on the drawing, or another clearly identified direction. Put that reference in the nesting notes rather than relying on how a part happens to appear on screen. If two areas are intentionally different, mark the exception and identify who approved it.

This is not a claim that every pattern must run one way. It is a check that the team has not left the decision implicit. The review is especially helpful where a panel can be rotated without changing its outline but where rotation changes the visual result after installation.

Check the Part Boundary Against the Usable Sheet Area

The nesting view should distinguish the part outline from the material area the team is actually prepared to use. Confirm that the plan identifies the intended sheet or material reference, the usable boundary assumed by the planner, and any areas deliberately left out of the cut plan. If an outline sits near an edge, flag it for the responsible operator or planner rather than assuming the drawing alone settles the question.

Avoid inventing a standard margin or a universal material yield target. The appropriate boundary can change with the material format, cutting approach, hold-down method, tool, and internal process. What matters for the release record is that the nest states the assumption and gives the next reviewer a chance to challenge it.

Where the plan derives from a customer-supplied template, the marine deck drawing and template guide helps explain why the source and its orientation need to remain attached to the work. A nesting plan is not a substitute for an unclear template.

Group Parts by Installation Relationship

Do not group parts only because they fit efficiently on screen. Parts that meet at a hatch, join across a seam, surround hardware, or form one visible deck zone should be easy to recognize as a group in the release record. Give the group a plain label such as cockpit set, hatch surround, console step, or port-side panel group when the approved input supports that description.

The label is a communication aid, not a new specification. It helps the machining team, inspection reviewer, and later installer see whether adjacent parts were considered together. It also makes it easier to identify a missing piece before the file reaches the machine.

Hardware and hatch areas deserve a separate look. Their outlines may have a visual or functional relationship to nearby panels that is not obvious from a broad nest view. Use the hatch and hardware cutout guide when those details need an explicit final check; do not hide them inside a generic group label.

Make Shared-Edge and Offcut Decisions Traceable

When adjacent outlines are close together, a planner may consider shared-edge, common-line, or offcut choices. The review should not assume that a space-saving arrangement is automatically approved. Instead, record whether the plan contains a special shared-edge decision, a separated-part requirement, or an offcut that needs to be retained, labeled, or discarded under the shop's own process.

This is where a short note prevents later reconstruction from memory. A release note can say that a particular relationship requires technical confirmation, that an offcut is retained for a named purpose, or that no special handling is intended. If the team has not made a decision, leave the toolpath unreleased and route the question to the person responsible.

Compare the Nest With the Current Revision One Last Time

Right before release, compare the nest reference with the current drawing revision and the order or job identifier. This final comparison is not a full redesign review. It is a guard against cutting an orderly plan made from a superseded file.

The boat flooring drawing revision control guide provides the broader record discipline for that check. In the nesting record, capture the revision used, the person who checked it, the date, and whether any changes remain open. If an updated drawing arrives after the nest was prepared, treat it as a new review event rather than overwriting the old file without a trace.

Release a Small, Readable Nesting Record

A useful record does not need to be elaborate. It should let another team member understand the production basis without guessing. At minimum, include the job reference, approved drawing or template reference, material reference, visible-direction note, grouped-part note, boundary or open-question note, revision check, and release status.

Keep the release status unambiguous: ready for toolpath, waiting for clarification, or superseded. Avoid vague labels such as "looks good." If a plan is waiting, name the missing decision-for example, a direction approval, template clarification, or technical review of a cutout. This makes the next action clear without creating a promise about fit or output.

After cutting, a first completed set may need its own approval process. The first-article approval guide addresses that later checkpoint. Nesting review comes earlier: it makes the planned arrangement and its assumptions visible before the first part is cut.

A Practical Handoff to XYF Marine

When a CNC machine shop contacts XYF Marine about a boat-flooring project, the most useful handoff is the current drawing or template reference, the intended material and visible-direction notes, the part groups, any hatch or hardware questions, and the items that remain unresolved before toolpath release. XYF Marine can review the information provided and identify details that still need confirmation before quotation, sampling, or order preparation.

FAQ

Is a nesting review the same as a CNC job pack?

No. A job pack collects the approved inputs and work context. A nesting review focuses on the pre-toolpath arrangement of those approved parts, including orientation, grouping, boundary assumptions, and release notes.

Can a machine shop rotate a boat-flooring part just because it fits better?

Only after the visible-direction requirement has been checked against the approved input. A geometric fit does not by itself confirm that grooves, borders, color contrast, or related parts will look as intended.

Should offcuts be included in the nesting record?

Include an offcut note when it affects the release decision or needs special handling. The record does not need to prescribe a universal reuse rule; it should identify the decision the responsible team made.

What if the drawing changes after the nest is ready?

Pause release and compare the new revision with the plan. Record the revised input and repeat the nesting check rather than assuming a previous layout remains valid.
